The Manual Heuristic Forecast

NGED has been investing in a suite of different forecasting tools for use cases stretching from multi-year planning forecasts through to day-ahead dispatch of flexibility services. However, until recently, the normal approach to forecasting among distribution network operators relied more heavily on the operator. That approach used no weather model and no machine learning: for each substation it assembled a small ensemble of historical analogues from that substation's own past, plotted them, and let a human operator read a forecast off the spread. That analogue method is the manual heuristic — the method our models will be compared against — so we reproduce it faithfully as the manual_heuristic baseline forecaster.

The recipe

For a given substation and target half-hour, the analogue ensemble is the observed power at the same time-of-day on the same weekday from:

  • the last 6 weeks (6 analogues), and
  • the 7 weeks spanning 49–55 weeks back — roughly a year ago, bracketing the same calendar point (7 analogues).

That is 13 analogues in total.

The 13 analogues are used as observed and weighted equally. The manual heuristic forecast itself does not adjust for holidays, switching events, or load growth.

The output is the plot itself. An operator looks at the 13 traces and their spread and forms a judgement. If a single deterministic number is needed, the operator reads off an upper percentile chosen to match the company's risk appetite. Our scoring uses the 95th percentile. An upper percentile is a deliberately conservative operating point: the tool's job is to warn when demand might approach the distribution network's flex/firm capacity limit, so erring high is the safe direction.

The operator's view

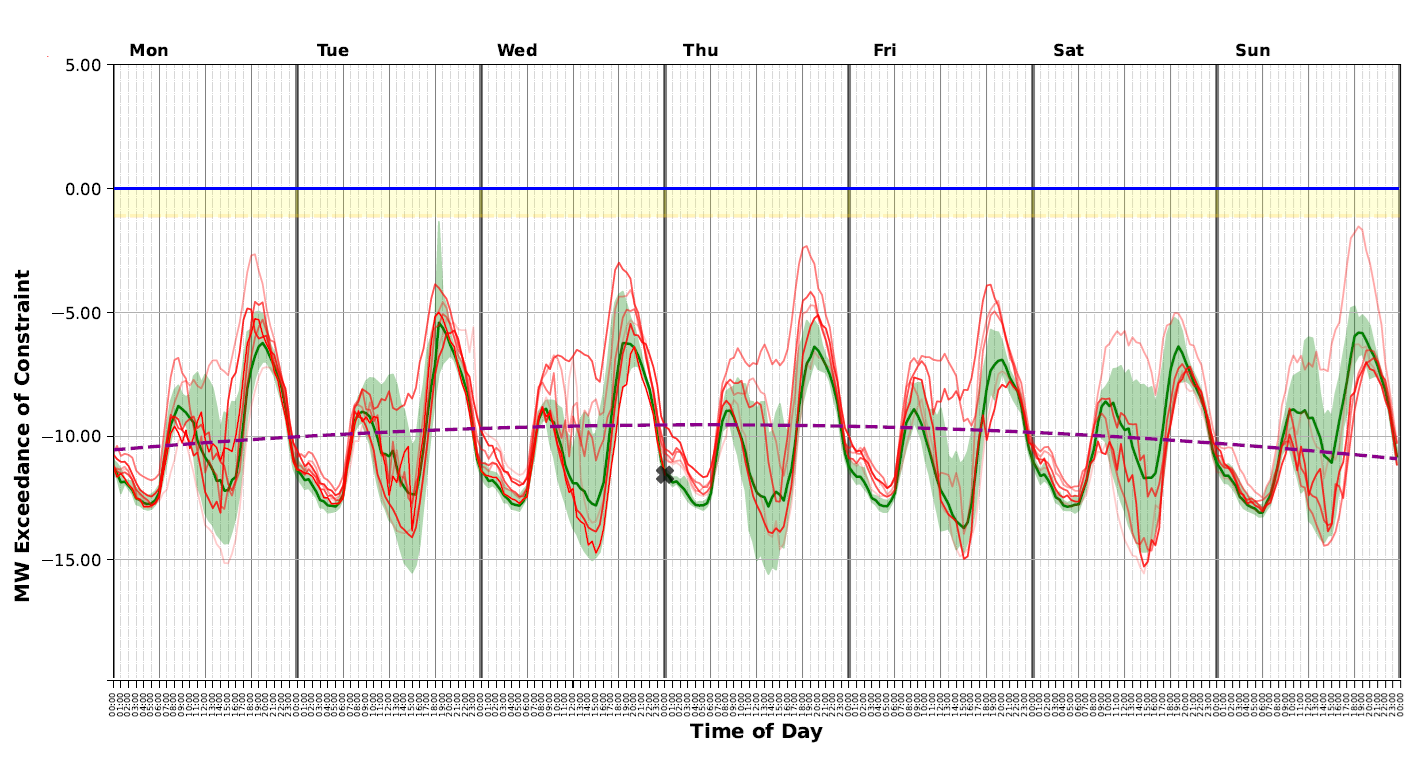

Mock-up of an analogue-ensemble forecasting tool

The image above is a mock-up of what an operator might see for one feeder over a week. Demand is plotted as headroom against the constraint — the y-axis is "MW Exceedance of Constraint", where the blue Flex Profile line at 0 is the limit and more-negative values are further below it. Reading the overlays:

  • Red/pink traces — the individual historical analogues (the 13 above).
  • Green line and green band — the mean of the analogues and the spread around it.
  • Purple dashed line — a smooth recent-trend line (a quadratic fit) the tool overlays as a sense-check.
  • Yellow band — a 5% warning zone.
  • Black cross — missing data.

The strong twice-daily peaks and the weekday/weekend difference are exactly the structure the same-weekday analogue selection is built to capture.

Why it matters for us

Because the manual heuristic uses no weather and no ML, beating the manual heuristic is the project's core deliverable.

Because the manual heuristic forecast does not adjust for holidays, switching events, or load growth, automating those adjustments is useful work in its own right — for example, aligning bank holidays and moveable feasts. Both the faithful replica and the variant that automates those adjustments are specified in Metrics & leaderboard → Baseline forecasters.
